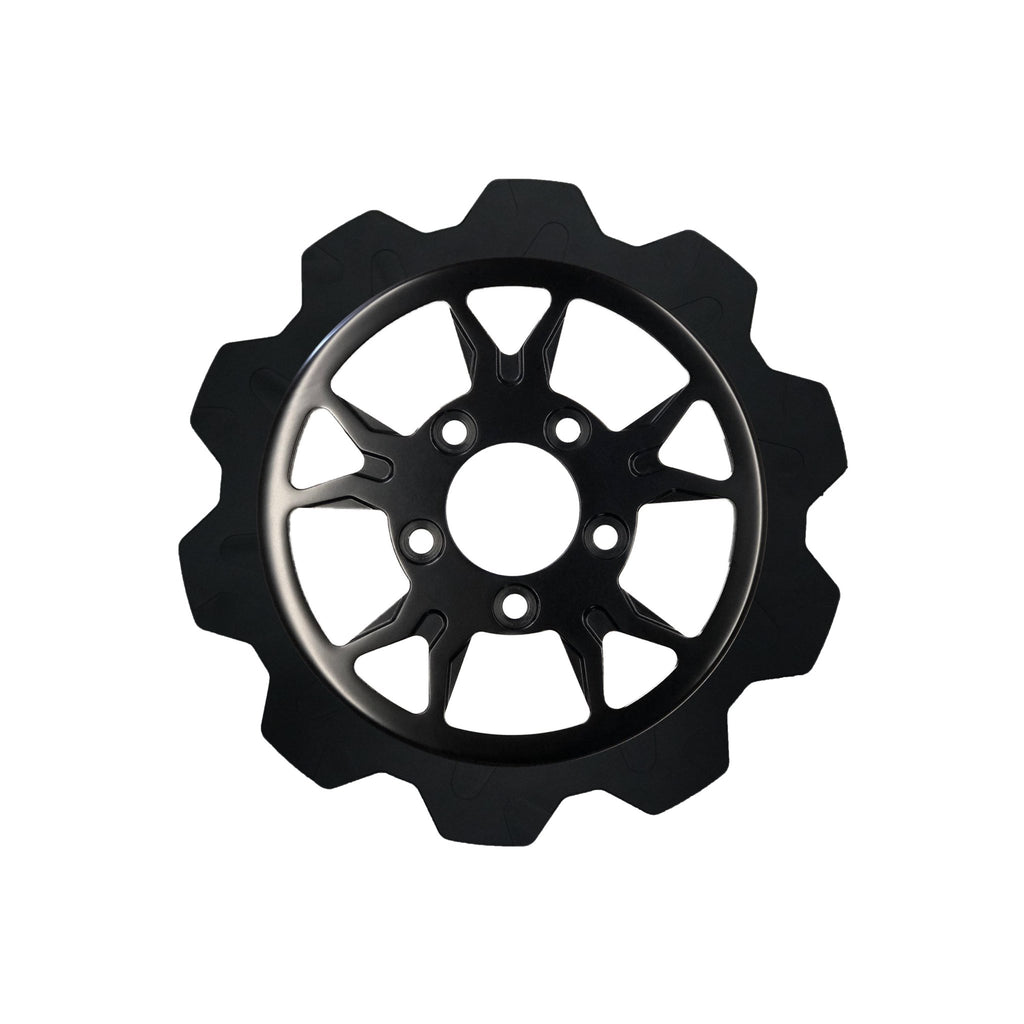

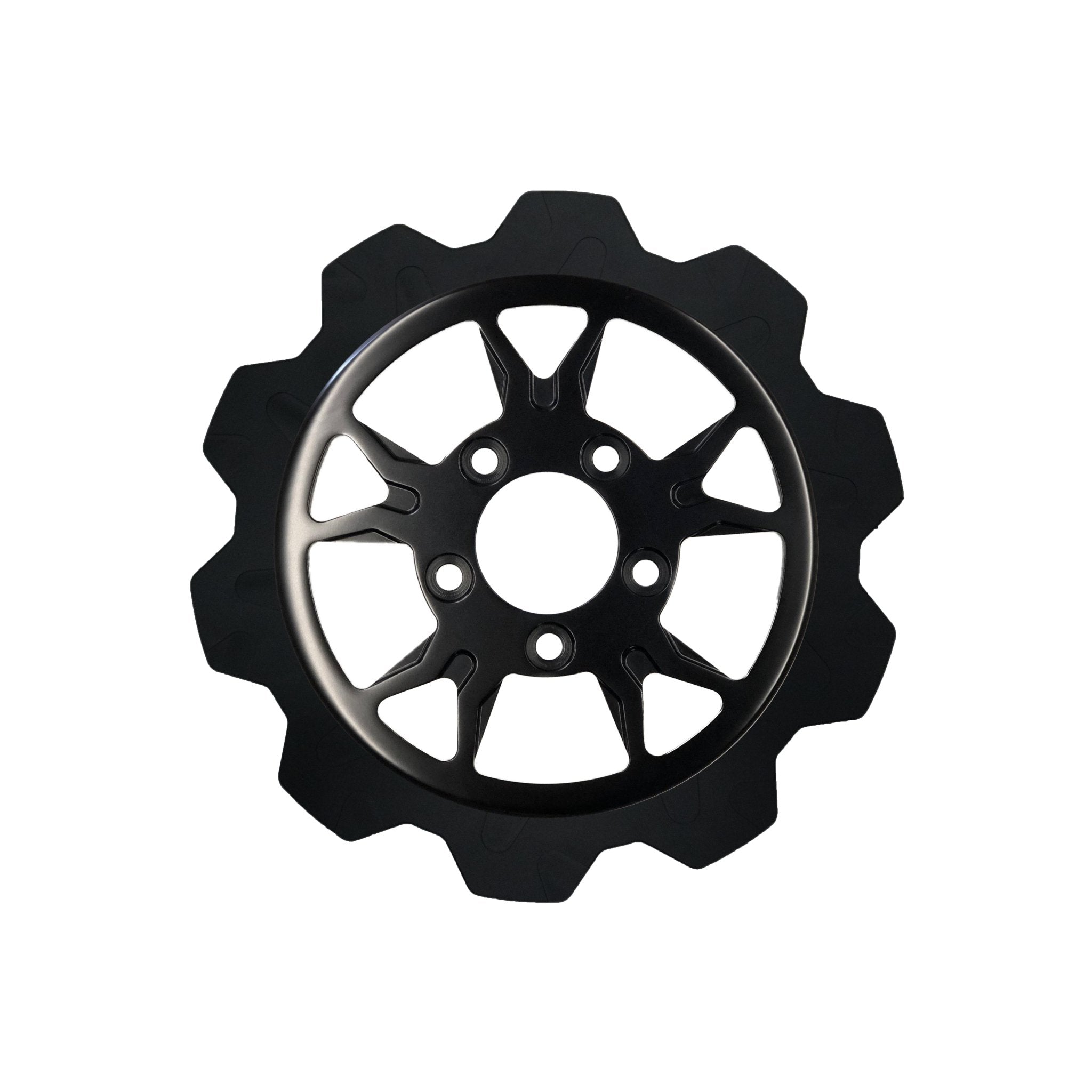

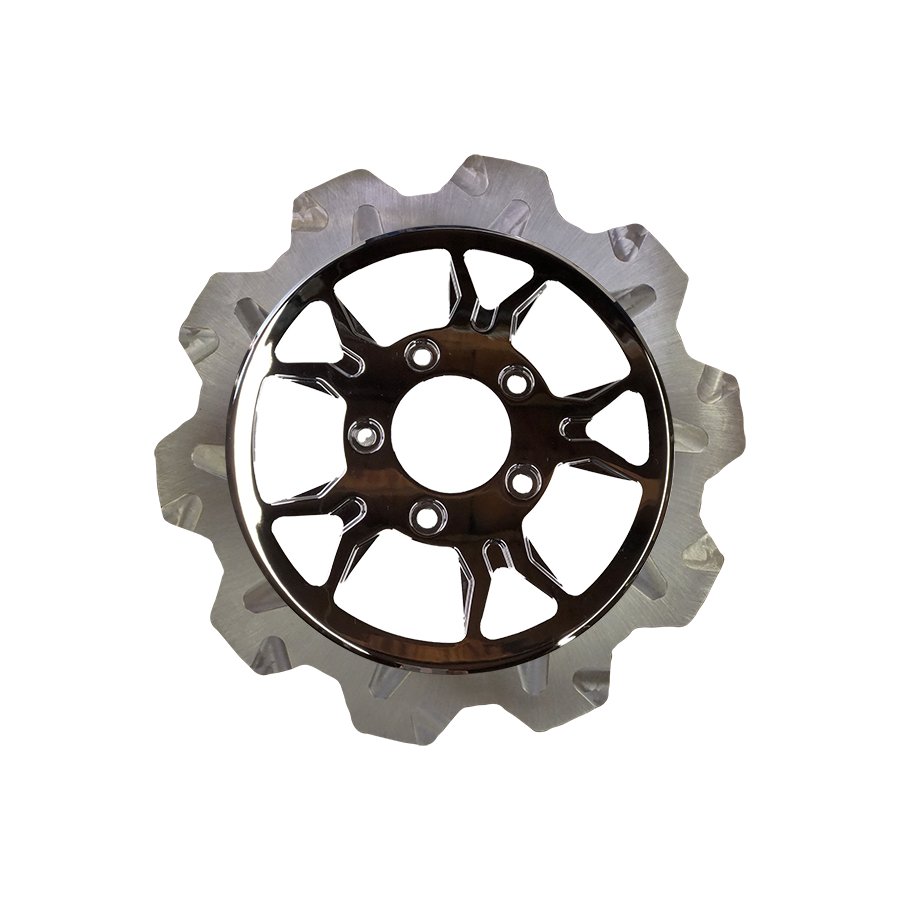

Lyndall Crown Cut B-52 Rotors (Hub Mount)

$580.00
By Lyndall

Rotor Color
Carrier Color
Size
Lyndall Rotors
Our full-floating, high-carbon steel rotors are CNC machined to exacting tolerances right here in the USA.
Lyndall rotors are meticulously designed and thoroughly tested to ensure maximum performance in the
most extreme environments and conditions known to powersports. We are so confident in our choice of
design, materialism and method of manufacturing that we guarantee our rotors for the life of your bike
(when used exclusively with our premium quality organic brake pads.)

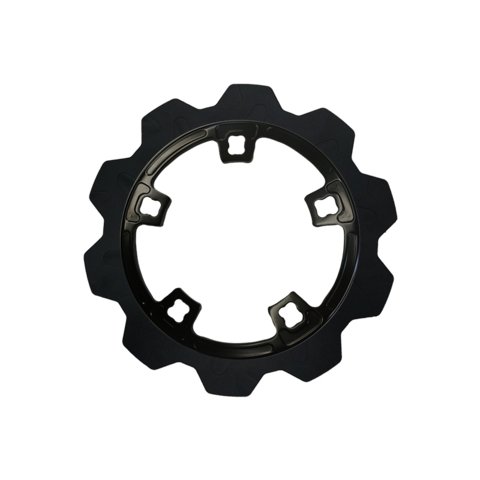

Our lug-drive rotors feature a highly advanced three-piece design, consisting of three components.
1. Outer friction ring (wear surface)
2. Inner carrier center (aesthetic portion)
3. Helical retaining ring that securely fastens the friction ring to the carrier center in a way that
prevents our floating rotor from becoming loose or noisy after the course of its service life.

Lyndall rotors are available in the following sizes to fit all Harley-Davidson models, and will work as a bolt-
on replacement:
● 11.5"; x 5mm
● 11.8" x 5mm
● 11.8" x 7mm (touring and V-Rod rear)
● 13" x 5mm

Our rotors have a 5 x 3.25" bolt pattern, excluding Enforcer, Dyna (Low and S) / V-Rod, and V-Rod rear.
Note: If you are purchasing a gold Lyndall rotor, you must use Lyndall Gold Plus brake pads. Lyndall Gold
Plus brake pads will keep the gold finish on our rotor and will provide excellent stopping power.
On rotors for pre 2000 Harley-Davidson models, with 1.985 inch hub register, you must use an adapter
ring to narrow the center ID of the rotor from 2.215 inch to 1.985 inch.

ROTOR FITMENT GUIDE
11.5 FRONT
1984-1999 Touring, Sportster, FXR, Dyna, Softail
2000-2005 Touring, Sportster, FXR, Dyna, Softail
2006-2007 Touring
2002-2014 Sportster
2006-2014 Softail

11.5 REAR
1984-1999 Touring, Sportster, FXR, Dyna, Softail
2000-2005 Touring, Sportster, FXR, Dyna, Softail
2006-2007 Touring
2002-2014 Sportster
2006-2017 Dyna
2006-present Softail

11.8 FRONT
2006-2017 Dyna (Low Rider S and Switchblade front wheels use 11.8 with Dyna-Vrod rotor. See rotor
bolt pattern)
2015-present Softail
2014-present Sportster
2008-present Touring (Some 2014-present Touring use 11.8 with Enforcer rotor. See rotor bolt pattern)
V-Rod

11.8 REAR
2008-present Touring
V-Rod
